Binary Search

This is a learning note related to the binary search algorithm. It contains the basic ideas of the binary search and some practice examples.

Bianry Search

Binary Search is a basic algorithm used to search specific value in an ordered array. The basic idea of binary search is to divide n elements into two roughly equal parts and compare a[n/2] with x. if x = a[n/2], x is found and the algorithm is aborted. If x<a[n/2], then continue searching for x in the left half of array a, if x>a[n/2], then just search for x in the right half of array a. The time complexity is the number of loops.

Practice

Define a auxiliary function $f$ that presents the relationship between $x$ with $f(x)$, and given a $target$ where $target = f(x_i)$. $x$ is what the the question asked for.
according the question to decide whether the left or right boundary is required. Using binary search to get the required boundary.

1011 Capacity To Ship Packages Within D Days

Question: A conveyor belt has packages that must be shipped from one port to another within days days.

The $i^{th}$ package on the conveyor belt has a weight of weights[i]. Each day, we load the ship with packages on the conveyor belt (in the order given by weights). We may not load more weight than the maximum weight capacity of the ship.

Return the least weight capacity of the ship that will result in all the packages on the conveyor belt being shipped within days days.

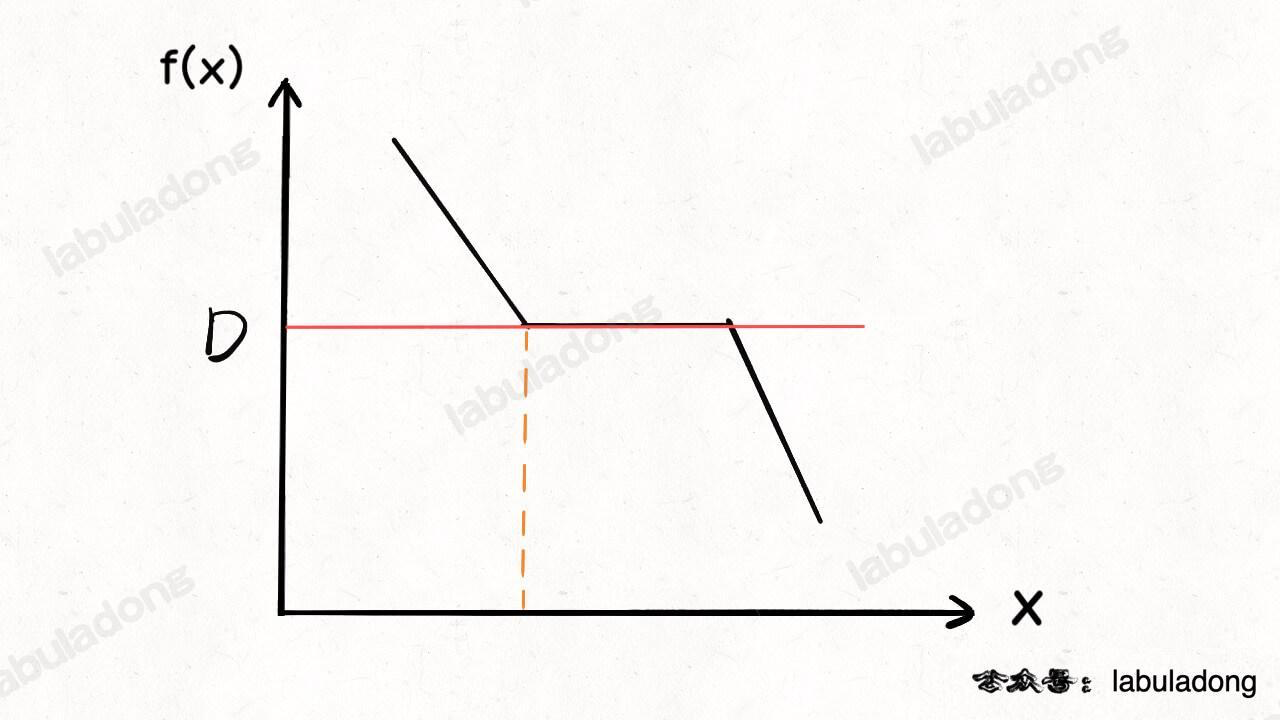

Solution: In this case, $x$ is the maximum capacity of the ship, $f(x)$ is the number of delivery days. The $target$ is given days . The relationship between them is as following:

auxiliary function where `target` is D
Here we need to reach the left boundary. Left boundary is the maximum weights amoung the packages, while the right boundary is one more than the sum weight of all packages. Since the ship should convey at least one package at a time, and at most all package at a time. And the package is indivisible, which means, if there is still capacity left on the ship, but the remaining capacity is less than the package weight, the ship cannot convey a part of the package.

Code:

Java:

class Solution {
    public int shipWithinDays(int[] weights, int days) {
        // set the left and right boundary for capacity, left closed right open
        int left = 0;
        int right = 1;
        for(int w : weights){
            left = Math.max(left, w);
            right += w;
        }

        // use binary search to get the left boundary
        while(left < right){
            int mid = left + (right - left) / 2;
            if(f(weights, mid) <= days){
                right = mid;
            }
            else{
                left = mid + 1;
            }
        }

        return left;
    }

    // auxiliary function
    // compute the number of days with given capacity
    public int f(int[] weights, int cap){
        int days = 0;
        for(int i = 0; i < weights.length; ){
            int x = cap;
            // traverse the list
          	// until the packages exceed the maximum weight capacity of the ship
            while(i < weights.length){
                if(x < weights[i]) break;
                else x -= weights[i];
                i ++;
            }
            days ++;
        }
        return days;
    }
}

Python:

class Solution(object):
    def shipWithinDays(self, weights, days):
        """
        :type weights: List[int]
        :type days: int
        :rtype: int
        """
        # x: capacity of the ship
        # f(x): days of shipping
        # target: days
        # find x_1 to make f(x_1)=target

        left = max(weights) # left boundary of x
        right = sum(weights) # right boundary of x

        while left < right:
            mid = left + (right - left) // 2
            if self.f(weights, mid) <= days: # dont forget self !!!!
                right = mid
            else:
                left = mid + 1

        return left

    def f(self, weights, x):
        i, l = 0, len(weights)
        days = 0
        while i < l:
            capacity = x
            while i < l: # loops condition
                if weights[i] <= capacity:
                    capacity -= weights[i]
                    i += 1 # no ++ in python
                else:
                    break
            days += 1
        return days

875 Koko Eating Bananas

Questions: Koko loves to eat bananas. There are n piles of bananas, the ith pile has piles[i] bananas. The guards have gone and will come back in h hours.

Koko can decide her bananas-per-hour eating speed of k. Each hour, she chooses some pile of bananas and eats k bananas from that pile. If the pile has less than k bananas, she eats all of them instead and will not eat any more bananas during this hour.

Koko likes to eat slowly but still wants to finish eating all the bananas before the guards return.

Return the minimum integer k such that she can eat all the bananas within h hours.
Solution:
- same as last question, the point is to find which value refers to $x$, $f(x)$ and $target$.
- In this case $x$ is k, $f(x)$ is the number of hours, $target$ is h.
- Be careful the left and right boundary refer to the min and max number of bananas Koko eats per hour. Koko doesn’t need to eat at least one pile per hour, so the left boundary is not the number of bananas in the maximum pile.
- One pile may take her several hours to finish eating. But if Koko eat up one pile, she will not eat any other bananas in another pile.

Code:

Java:

class Solution {
    public int minEatingSpeed(int[] piles, int h) {
        // left and right boundary, left closed right open
        // left boundary means the minimum amount Koko can eat
        // right boundary is one more than the amount of bananas that may in a pile
        int left = 1;
        int right = 1000000000+1;

        while(left < right){
            int mid = left + (right - left) / 2;
            if(f(piles, mid) <= h) right = mid;
            else left = mid + 1;
        }

        return left;
    }

    // auxiliary function
    // where x is k, f(x) is the number of hours, target is h
    public int f(int[] piles, int k){
        int h = 0;
        for(int i = 0; i < piles.length; i++){
            // compute how long it will take Koko to finish eating thi pile
            // be careful, if Koko eats all bananas in a pile,
            // she will not eat any more bananas during this hour
            h += piles[i] / k;
            if(piles[i] % k != 0) h++;
        }
        return h;
    }
}

Python:

class Solution(object):
    def minEatingSpeed(self, piles, h):
        """
        :type piles: List[int]
        :type h: int
        :rtype: int
        """
        """
        x: eating speed
        f(x): hours
        target: minimum x
        """
        left = 1
        right = 10**9 + 1
        while(left < right):
            mid = left + (right - left) // 2
            if(self.f(piles, mid) <= h): # '=' means
                right = mid # left close right open
            else:
                left = mid + 1
        return left

    def f(self, piles, x):
        hours = 0
        i, piles_len = 0, len(piles)
        while(i < piles_len):
            hours += (piles[i] // x)
            if(piles[i] % x > 0):
                hours += 1
            i += 1
        return hours


704 Bianry Search

Question: Given an array of integers nums which is sorted in ascending order, and an integer target, write a function to search target in nums. If target exists, then return its index. Otherwise, return -1.

You must write an algorithm with O(log n) runtime complexity.
Solution: super simple example of using binary search directly. Be careful if the target cannot be found, we should return -1.

Code:

Java：

class Solution {
    public int search(int[] nums, int target) {
        int left = 0, right = nums.length;
        while(left < right){
            int mid = left + (right - left) / 2;
            if(nums[mid] == target) return mid;
            else if(nums[mid] > target) right = mid;
            else left = mid + 1;
        }
        return -1;
    }
}

Python:

 class Solution(object):
     def search(self, nums, target):
         """
         :type nums: List[int]
         :type target: int
         :rtype: int
         """
         left, right = 0, len(nums) # assignment statement
         while left<right: #[...)
             mid = left + (right - left) // 2 #to prevent int overflow
             if nums[mid]==target:
                 return mid
             elif nums[mid]>target:
                 right = mid # right open
             else:
                 left = mid + 1 # left closed

         return -1


74 Search a 2D Matrix

Question: You are given an m x n integer matrix matrix with the following two properties:
- Each row is sorted in non-decreasing order.
- The first integer of each row is greater than the last integer of the previous row.
Given an integer target, return true if target is in matrix or false otherwise.

You must write a solution in O(log(m * n)) time complexity.
Solution: Same as previous one, but here we need to flatten the 2D matrix as 1D list in our mind.

Code:

class Solution {
    public boolean searchMatrix(int[][] matrix, int target) {
        int m = matrix.length;
        int n = matrix[0].length;
        int left = 0, right = m*n-1;
        while(left<=right){
            int mid = (right-left)/2 + left;
            if(matrix[mid/n][mid%n] == target) return true;
            else if(matrix[mid/n][mid%n] > target) right = mid-1;
            else left = mid + 1;
        }
        return false;
    }
}
